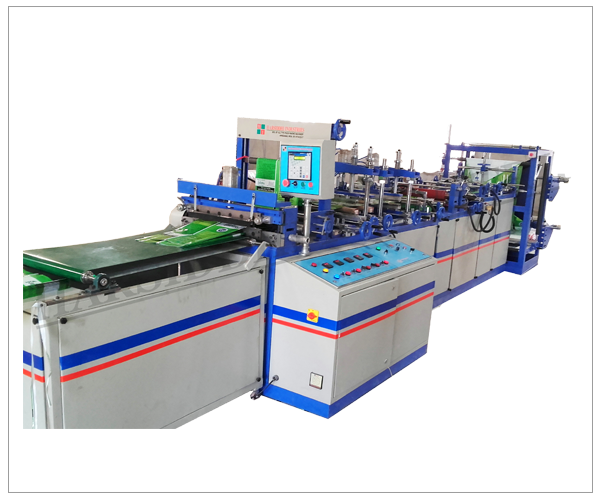

Pneumatic Combination Pouch Making Machine

Machine is divided in following section:

Conveyor
Cutter
Registration
Slitting
Print/Mark section
Punching
Longitudinal sealing/ cooling
Dancer
Three side sealing
Stand-up sealing/ zipper sealing
Gussate forming
Center sealing
Tube forming
Triangle folder
Unwinder
Edge guider

Production Variety:

Six side seal pouches
Three side seal pouches
Center seal pouches
Perphoration pouches
Gussete pouches
Sheet Cutting
D-punch Bag
Retort Pouches
Corner cut pouches

Specifications:
	Max.	Max.
paper size(mm)	1000	100
pouch length(mm)	500	50
standup pouch length(mm)	600	100
roll diameter(mm)	600	100
gussate deep(mm)	75	15
double stroke length(mm)	10	3
machine speed* (cpm)	150	10

Auto-tune PID TEMPERATURE CONTROLLER
Imported motors and gear boxes
Imported Photo sensor for print mark registration
all Pneumatic products are from Festo
