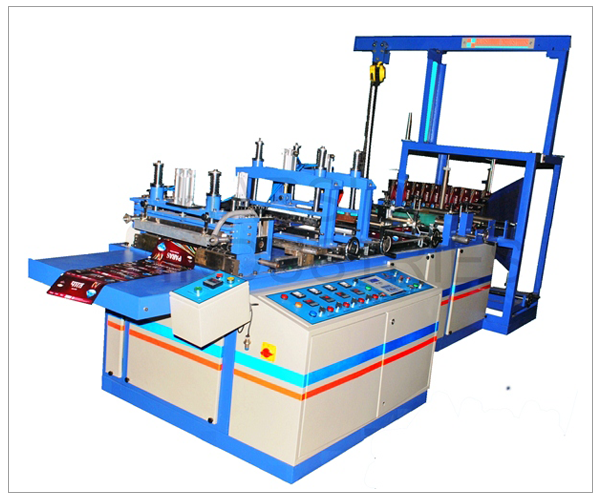

Pneumatic Three Side Seal Pouch Packing Machine

Machine is divided in following section:

Conveyor
Cutter
Slitting
Registration
Print/Mark section
Punching
Bottom/Longitudinal cooling
Bottom/Longitudinal sealing
Dancer
Slitter/Trimmer
Knurling section
Three side seal section
Triangle folder
Unwinder

Production Variety:

Three side seal pouches
D-punch Pouches
Perphoration Pouches
Sheet Cutting
Foil Pouch

Main Features

HMI controlled
Robust and maintenance free design
Fully synchronized servos
Tension Control
Edge guider/ web liner
Programmable conveyor

Specifications:
	Max.	Max.
paper size(mm)	1000	100
pouch length(mm)	500	50
standup pouch length(mm)	600	100
roll diameter(mm)	600	100
machine speed* (cpm)	10	25

Auto-tune PID TEMP. CONTROLLER
Imported motors and gear boxes
Imported Photo sensor for print mark registration
all Pneumatic products are from Festo
