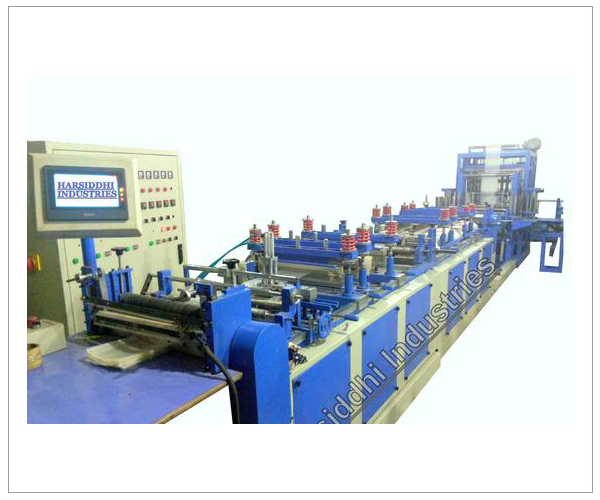

Stand Up Zipper Pouch Packing Machine

Machine is divided in following section:

Conveyor
Cutter
Slitting
Print/Mark section
Punching
Longitudinal sealing/ cooling
Inline sealing/ cooling
Stand-up sealing/ zipper sealing
Gussate forming
Punching for stand-up pouches
Two unwinder for extra insertion flap
Dancer
Registration
Triangle
Unwinder

Production Variety:

Two Line Stand- up Pouches (with or without zipper)
Three side seal pouches
D-punch Bags
Spout Pouches
Retort Pouches
Corner cut pouches

Main Features

Fully Touch-screen controlled (7.00")
Robust and maintenance free design
Four synchronized servos
Tension Control
Edge guider/ web liner
Air shaft
Programmable conveyor
Double stroke cutter programme for corner cut pouches

Specifications:
	Max.	Max.
paper size(mm)	1000	100
pouch length(mm)	500	50
standup pouch length(mm)	350	50
roll diameter(mm)	600	100
gussate deep(mm)	100	25
double stroke length(mm)	10	3
machine speed* (cpm)	144	25

Auto-tune PID TEMP. CONTROLLER
Imported motors and gear boxes
Dyna-spede tension controller
Imported Photo sensor for print mark registration
all Pneumatic products are from Festo
